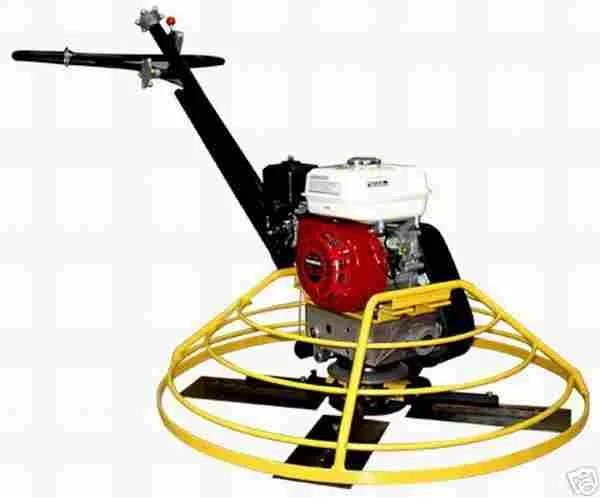

The CONSMAC ST-36 walk-behind concrete power trowel is a high-efficiency machine engineered for concrete floor slurry lifting, leveling, and finishing. It is widely used in high-standard factories, warehouses, logistics centers, parking lots, plazas, and various small-to-medium concrete floor construction applications.

Powered by a 5.0HP four-stroke gasoline engine, the unit operates at 3600rpm, which is reduced through the gearbox to a blade speed of 120-140rpm. This speed range falls within the optimal zone for walk-behind trowel finishing — ensuring both efficient surface processing and effective handle control. With a rotor diameter of 910mm and guard ring diameter of 940mm, the wide-coverage design covers a substantial area in a single pass, reducing overlap and improving construction efficiency.

Weighing 95kg with dimensions of 110×110×30cm, the machine balances operational stability and portability. For stability, the 95kg weight ensures consistent blade-to-surface contact pressure, preventing bouncing or loss of control at high speed. For portability, single-person relocation is achieved by tilting the machine onto its rear wheels. Blade pitch is quickly adjusted via a manual mechanism, allowing operators to switch between floating and finishing modes as concrete curing progresses.

The 0.8mm vibration amplitude and 100mm influence depth provide auxiliary surface densification during troweling, further ensuring the density and strength of the surface layer. This vibration-assisted function enables the ST-36 to not only complete surface treatment but also compact and strengthen the concrete surface during finishing operations.

With a monthly production capacity of 3,000 units, consistent quality and reliable supply are assured. The product is CE-certified, with mechanical test reports and factory video inspection records provided. Core components (engine, motor, gearbox) are covered by a 1-year warranty. Manufactured in Ningbo, Zhejiang, China.
